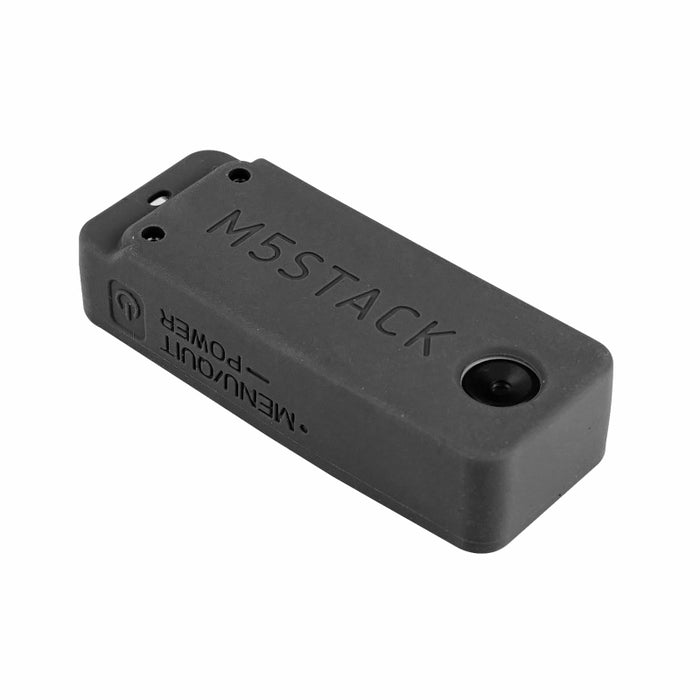

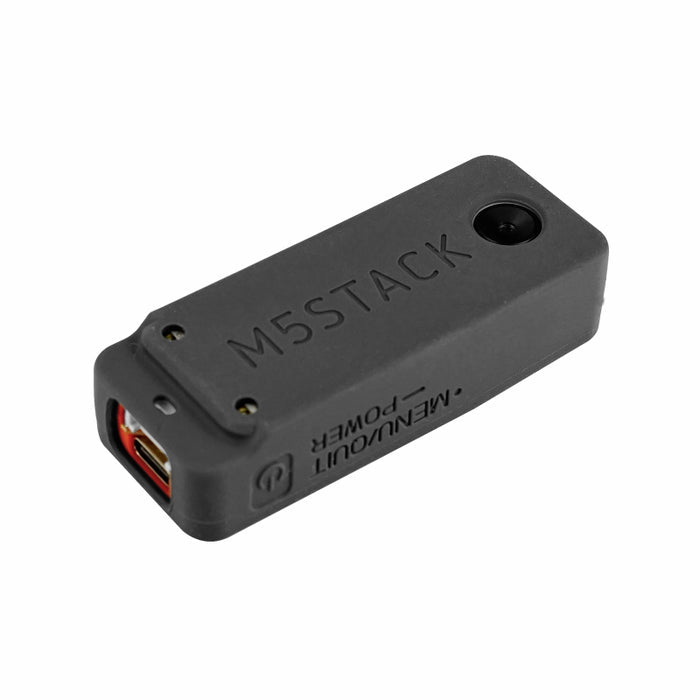

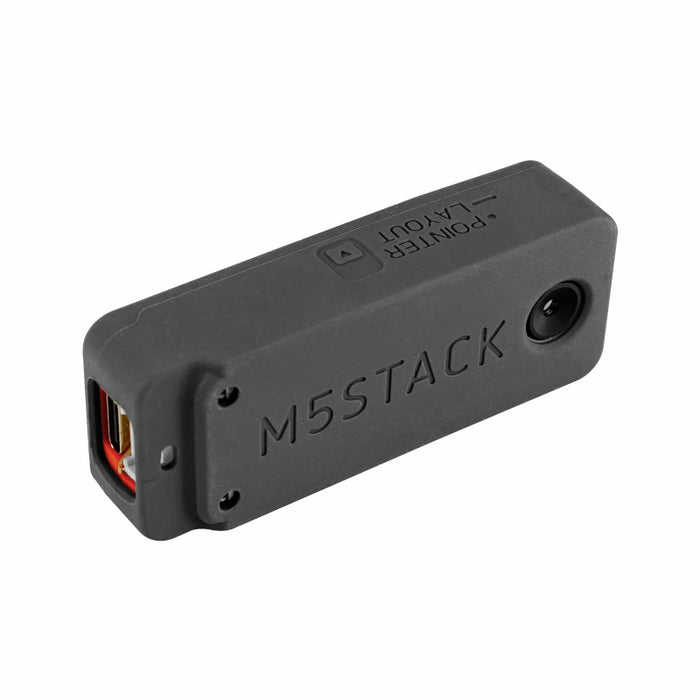

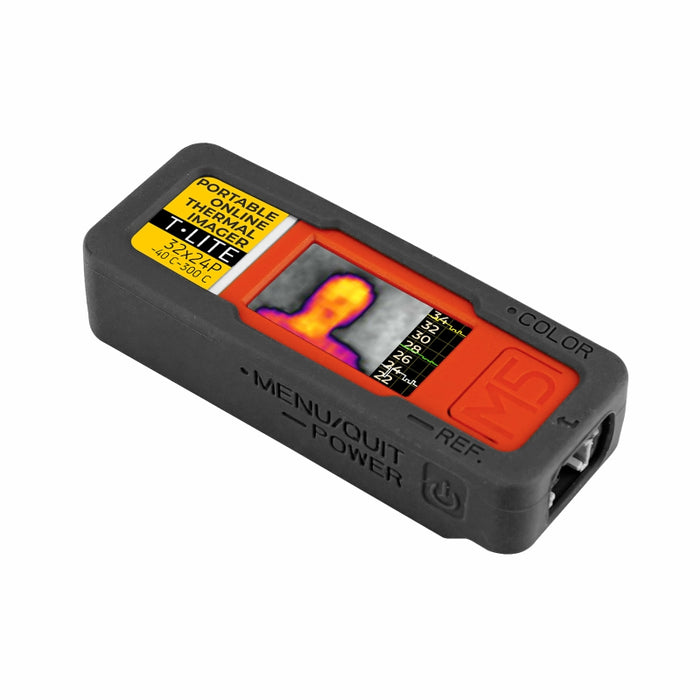

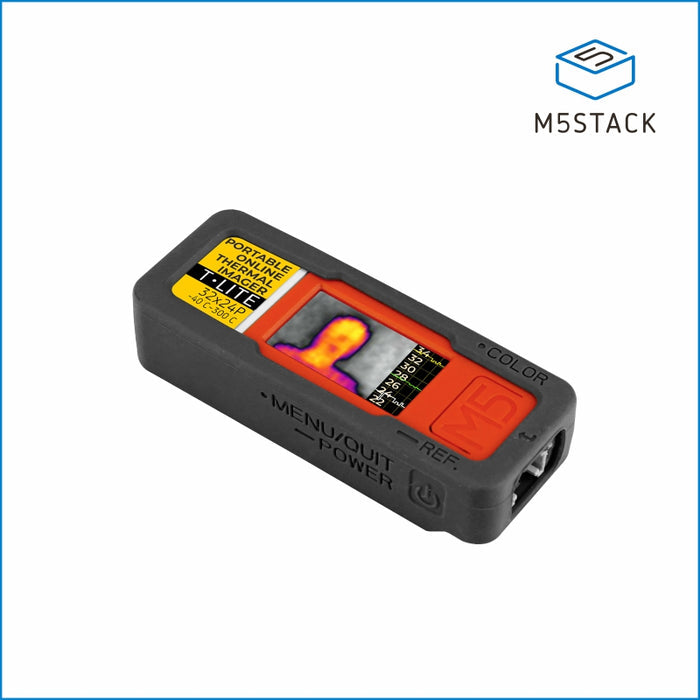

M5Stick T-Lite Thermal Camera Dev Kit (MLX90640)

Description

The T-Lite is an integrated thermal imaging temperature measurement device with online detection capabilities. This product is primarily composed of the M5StickC-Plus and HAT THERMAL, utilizing the MLX90640-BAA infrared imaging sensor. The main control is powered by the ESP32-PICO-D4 chip, featuring WIFI functionality, a 135 x 240 resolution TFT screen, and a built-in 160mAh battery. The name "T-Lite" represents Temperature (T) and Lite, signifying compactness and high integration. Users can set up a high-temperature warning function and view temperature images and data in real-time via cloud and local network. M5 also provides an online data API interface, allowing users to access remote images and corresponding data through EZData, facilitating engineering project applications.

Features

• Developed based on ESP32-PICO, WiFi
• User button, LCD (1.14 inch), power/reset button
• 160 mAh lithium battery
• Integrated passive buzzer
• Field of view: 110°×75°
• Temperature measurement range: -40°C ~ 300°C

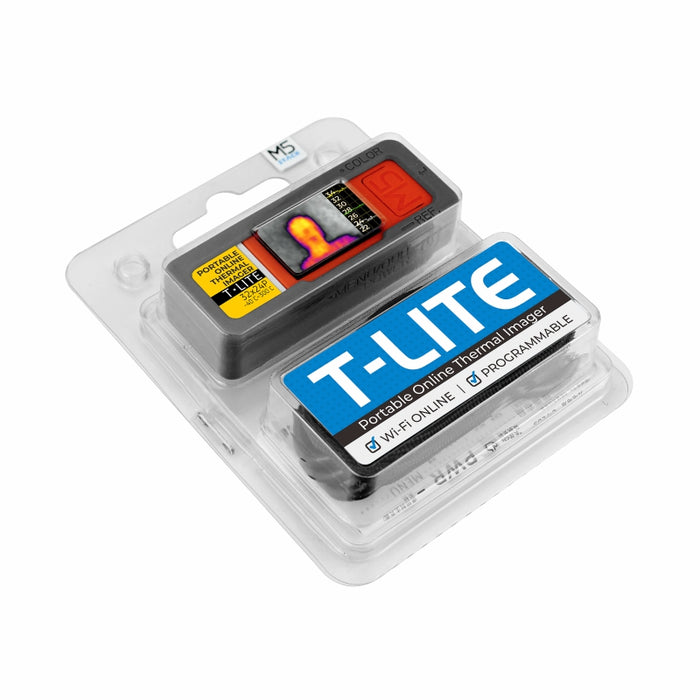

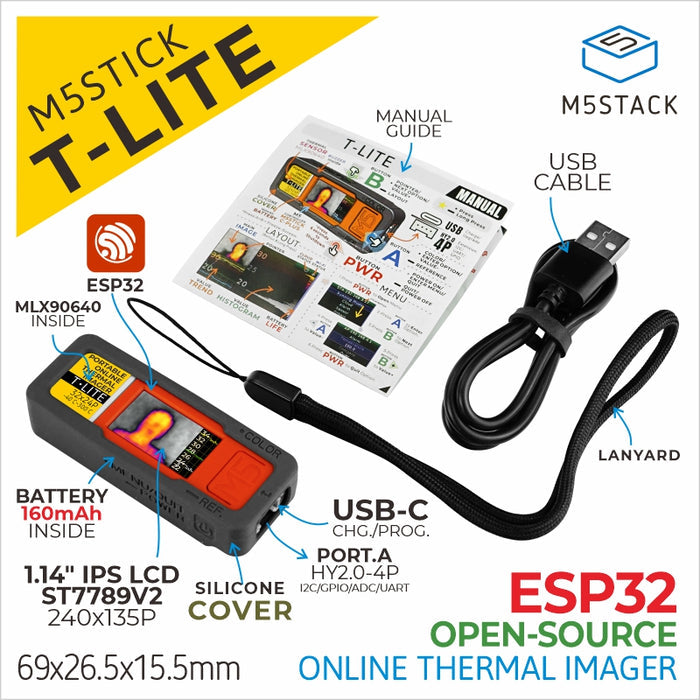

Includes

• 1 × T-Lite
• 1 × StickC-Plus
• 1 × Lanyard
• 1 × USB Type-C cable (50cm)
• 1 × User manual

Applications

• Temperature detection and warning
• Circuit temperature anomaly monitoring
• High-precision non-contact temperature measurement
• Biological movement monitoring

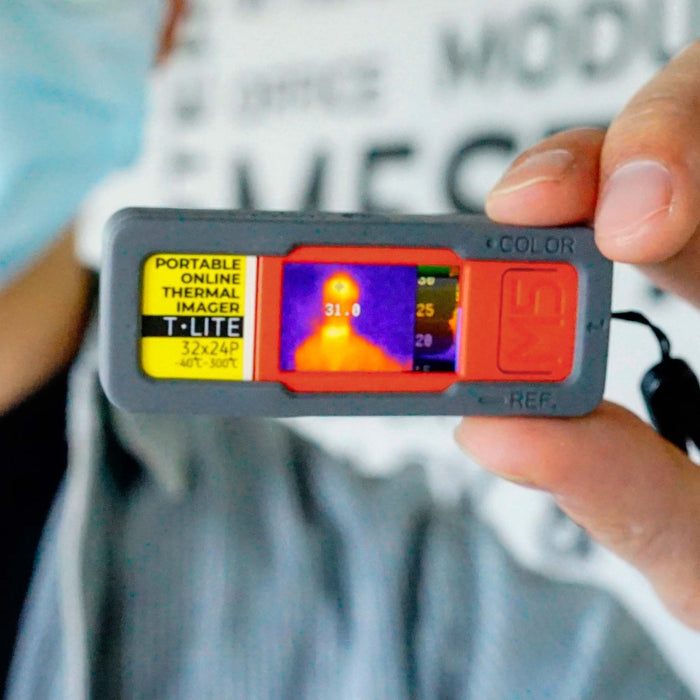

• Visual infrared imaging
