ESP32 Ethernet Unit with PoE

Description

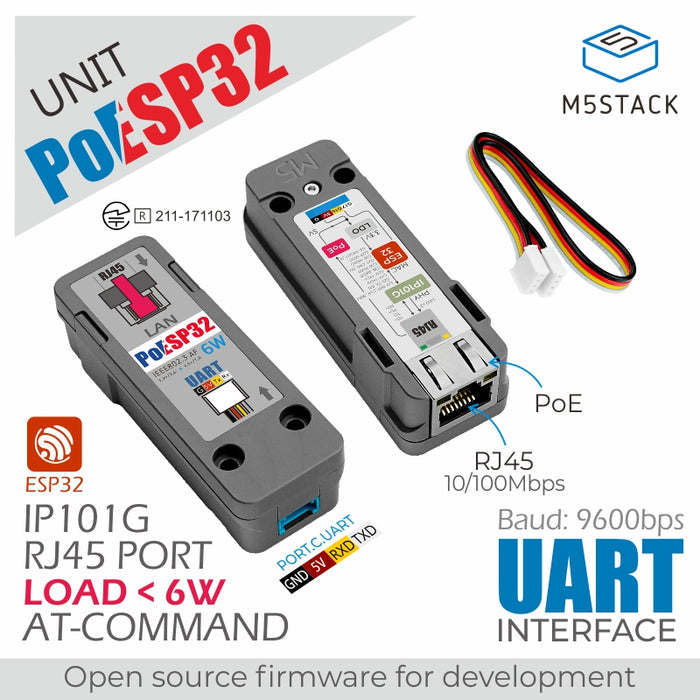

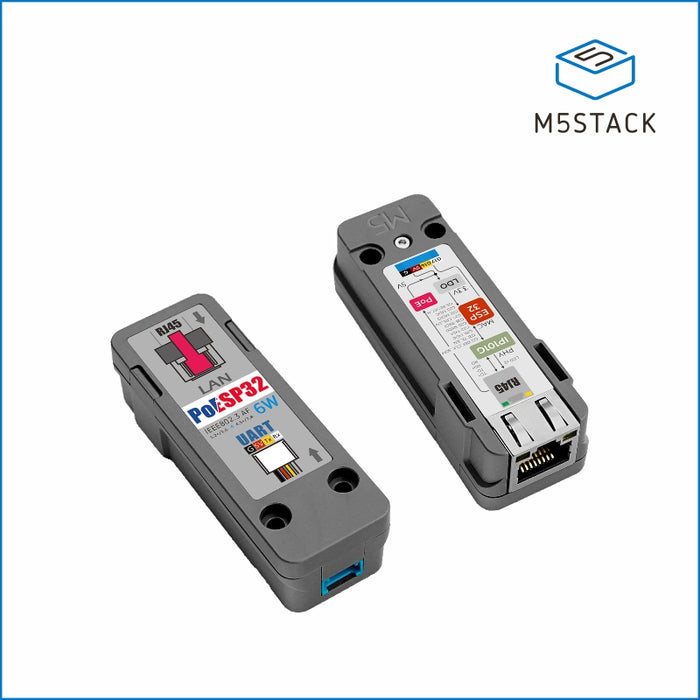

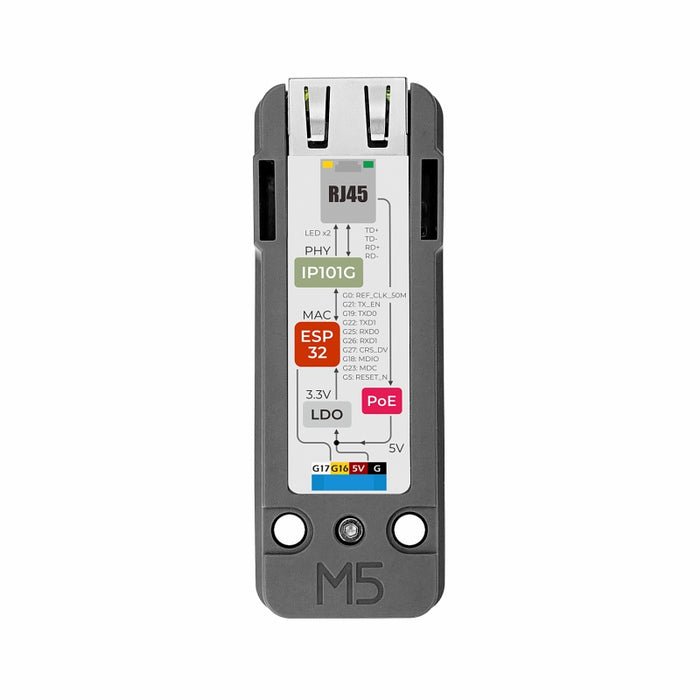

Unit PoESP32 is an ESP32 Ethernet controller integrated with PoE (Power Over Ethernet) functionality. It adopts the ESP32 built-in MAC + IP101G physical layer transceiver solution. The module comes preloaded with ESP-AT firmware, supporting various protocol stack control commands such as TCP, MQTT, and HTTP. Through serial communication, simple AT commands can be used to achieve server connection, data communication, and remote control functions. With PoE power supply, it not only saves unnecessary power cables but also provides a certain load capacity for your devices. The module reserves secondary development interfaces, and with the rich examples and protocol stack support in the ESP32 development platform, it can quickly achieve customized functions according to your usage scenarios.

Features

• Embedded ESP32 main control core
• PHY solution:
  • Transceiver model: IP101G
  • IEEE 802.3/802.3u standard
• Ethernet interface:
  • PoE standard: PoE IEEE802.3 AF / Supports a maximum load power of 6W

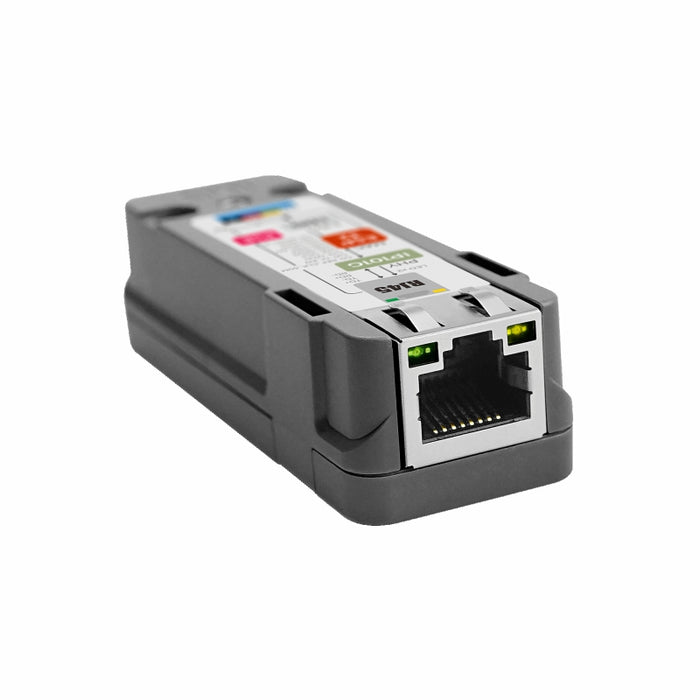

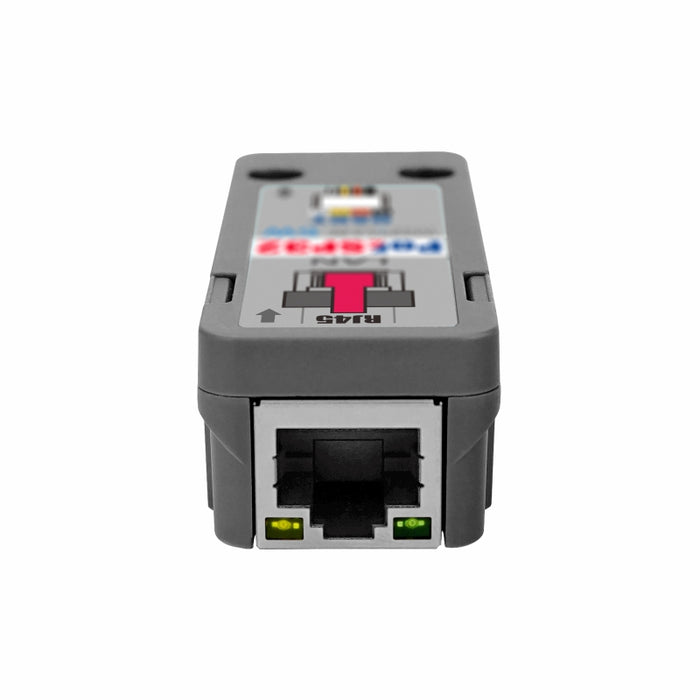

  • RJ45 port 10/100Mbps
• Communication/Download interface:
  • Default firmware: ESP-AT / Supports secondary development for TCP Client/HTTP/CoAP and other protocol stacks
  • Programmable / Supports secondary development, with reserved program download interface
• Power supply methods:

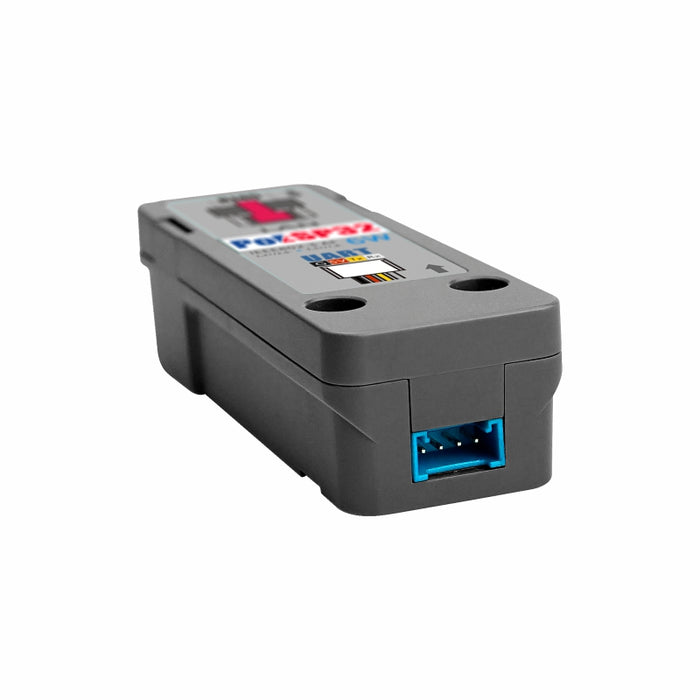

  • HY2.0-4P interface 5V power supply
  • PoE power supply (PoE IEEE802.3 AF)
• Development methods:
  • AT commands, UART: 9600bps default
  • Development platforms: UIFlow (coming soon), Arduino, ESP-IDF

Includes

• 1 x Unit PoESP32
• 1 x HY2.0-4P Grove cable (20cm)

Applications

• Ethernet controller
• Data communication and remote control

Specifications
