Base AAA Battery Holder

Description

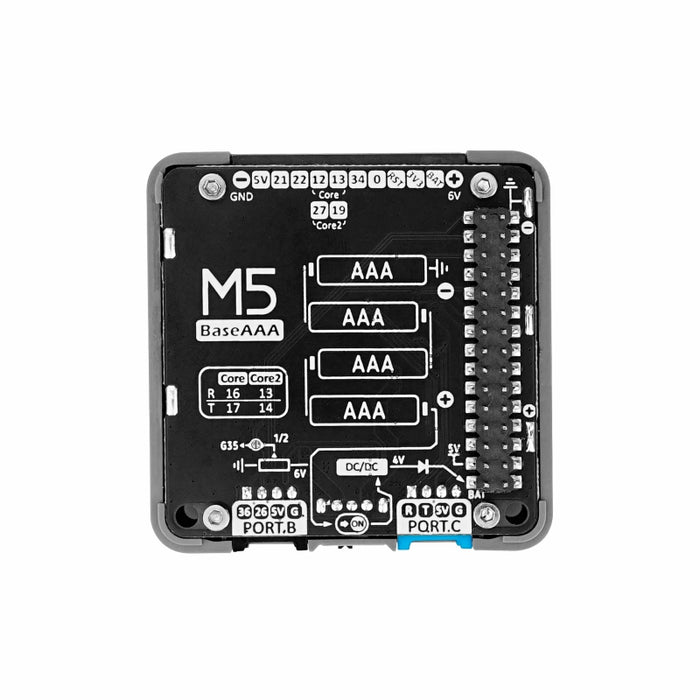

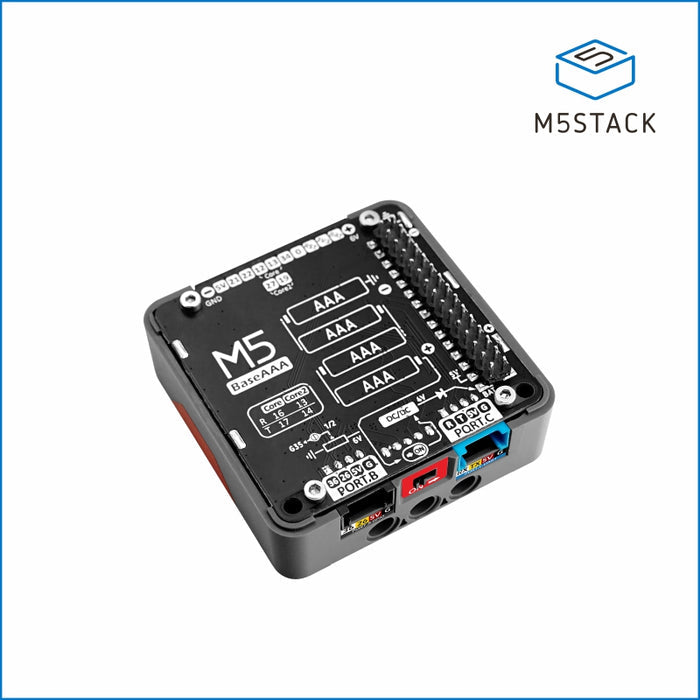

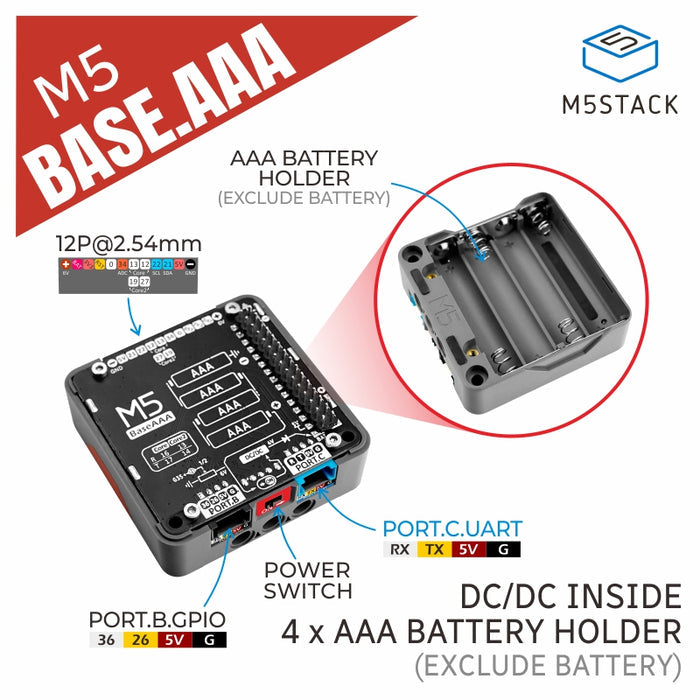

Base AAA is a "5X5cm" series base powered by four AAA dry batteries. Unlike other lithium battery bases, Base AAA uses safe and reliable dry battery power supply. It also features an onboard physical power switch that can completely turn off the power to reduce dry battery loss. It has reserved two PORT.B and PORT.C interfaces for expansion, provides a 1 x 12P 2.54 pitch female header expansion interface, circular mounting holes on the side for easy fixing and expansion, supports magnetic installation at the bottom, and two embedded brass nuts for mounting.

Features

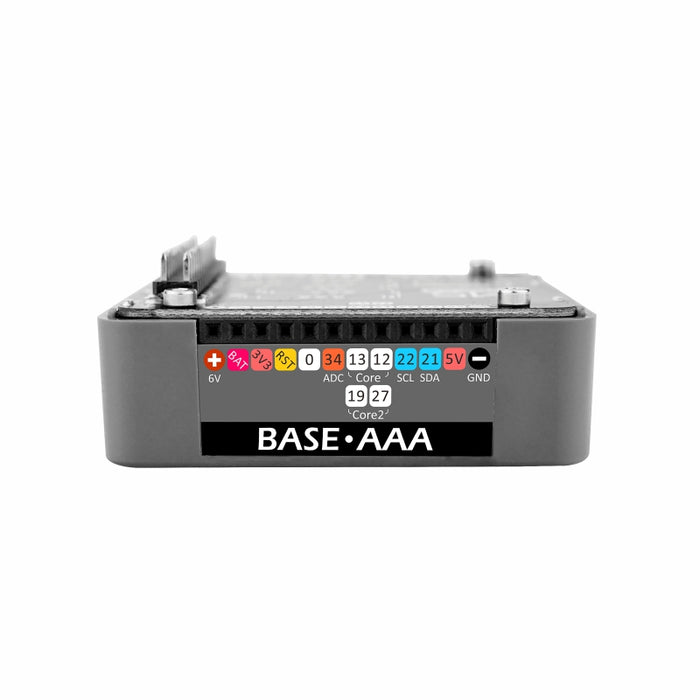

• 1 x 12P 2.54 interface

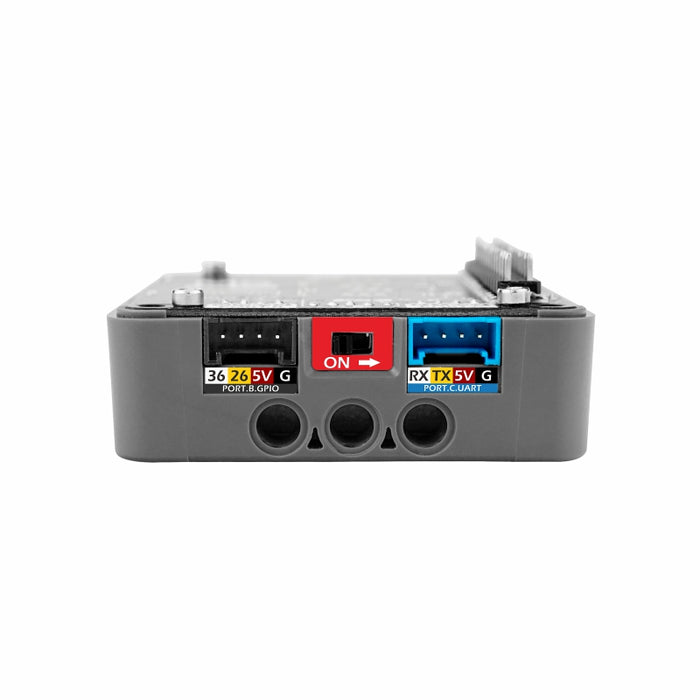

• PORT.B, PORT.C interface
• Power switch
• Supports two power supply modes:

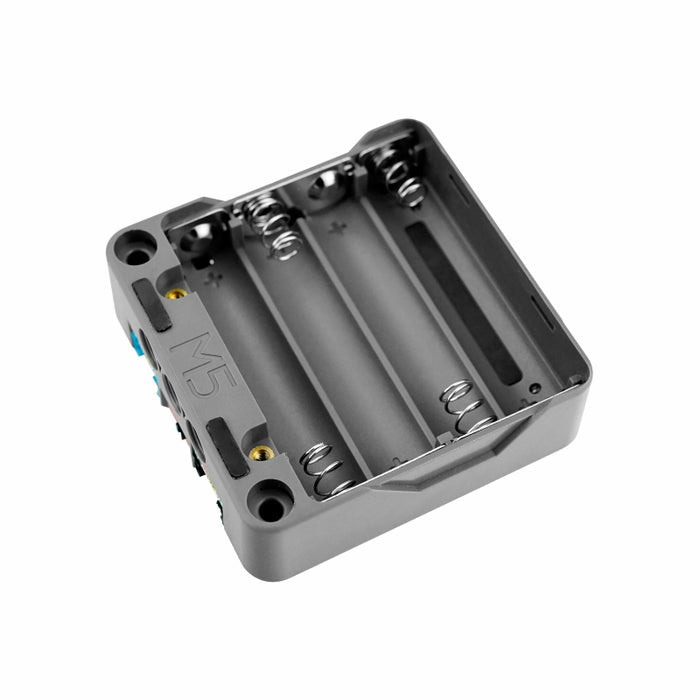

  • Powered by four AAA dry batteries, stepped down from 6V -> 4V via DC-DC, supplied to the BUS BAT Pin
  • External power supply through Dupont wire to the BAT/GND of the 12P 2.54 interface
• Multiple fixation methods:

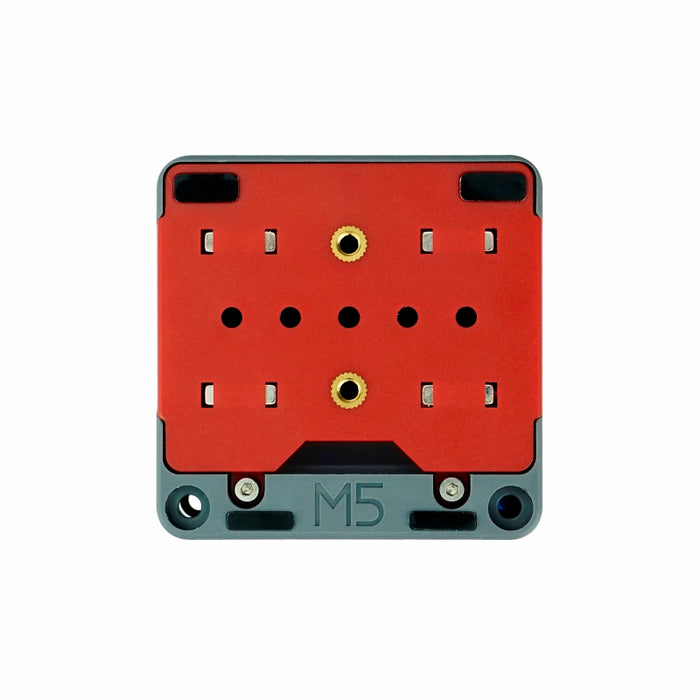

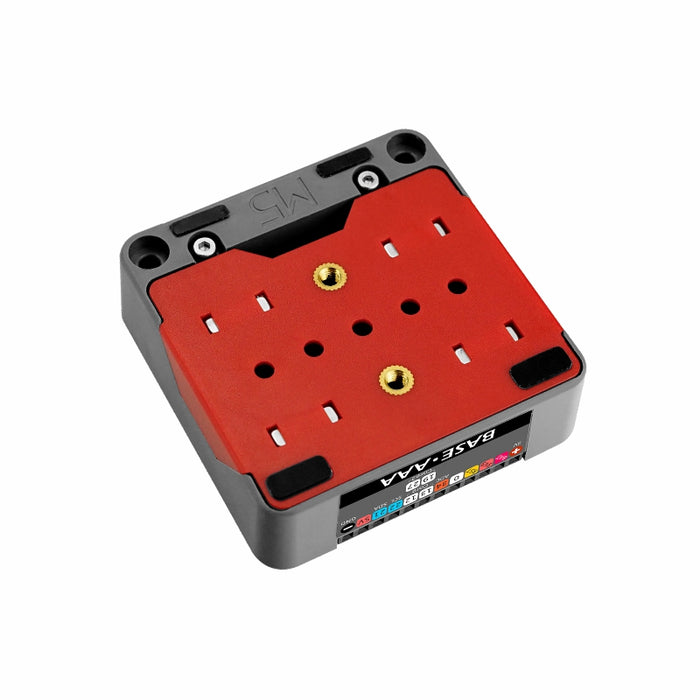

  • Bottom magnetic fixation
  • Two embedded brass nuts at the bottom
  • Three reserved mounting holes on the side

Includes

• 1 x Base AAA
• 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
